10-50kg/bag

  • Tel:+86-335 8050535 8050799 8065663
  • Fax:+86-335 8051760
  • Email:puda0335@sohu.com

 1. Product Description:

This series of machines are designed for packing irregular granule, non-free flowing powdery and granular mixture into open mouth bags. Representative Materials are Mental, Nonmetal, Industrial Chemical, Refractory Materials, and etc.

2. Technical Parameters:

l  Weighing Range: 10-50kg

l  Packing Rate: 2-15bags/min (Packing speed depends on the material features and packing bags)

l  Weighing Accuracy: ±0.2

l  Applicable Voltage: AC220V-440V 50/60HZ Three-Phase Four-Wire (Client shall provide local voltage class and frequency)

l  Air Source Requirement: 0.4-0.8MPa Dry Compressed Air, Total Air Consumption: 0.8m3/min

l  Applicable Environment: Altitude2000meters, Humidity95% RH Non-congealable Dew, Operating Temperature:050, Storage Temperature : -2070

 3. Working Principle:

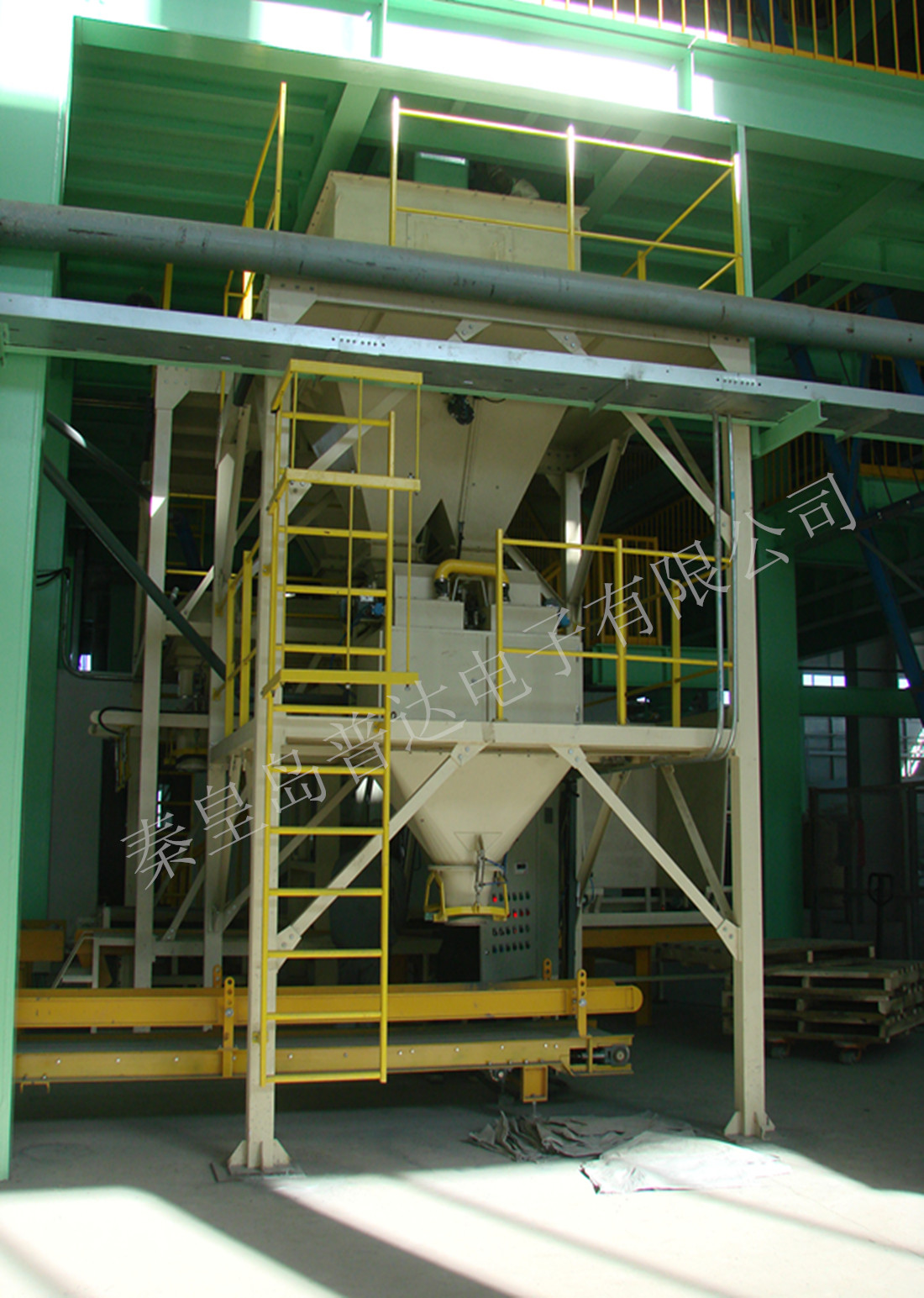

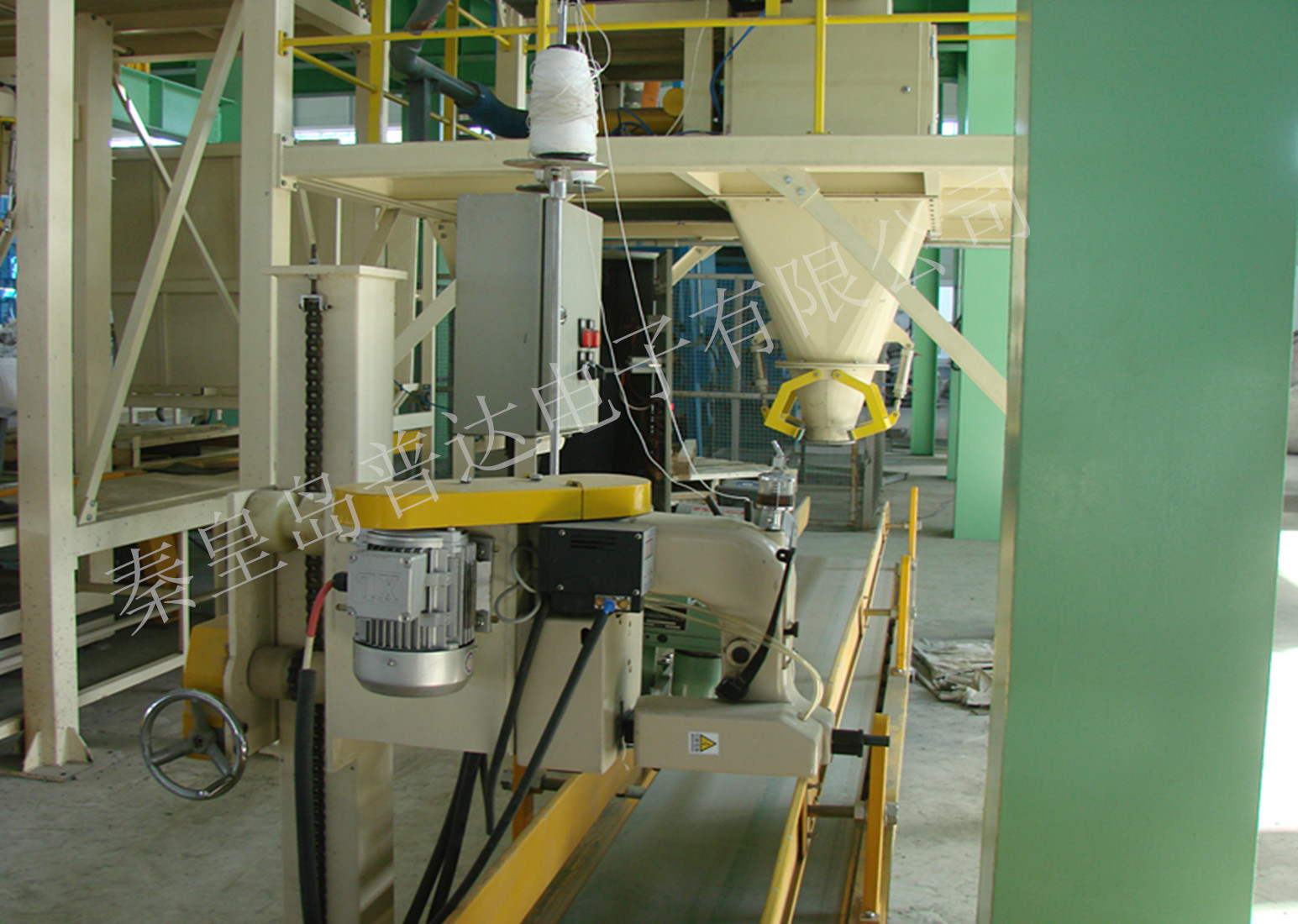

Material is fed by belt feeder, and material will enter into weighing system uniformly from silo to feeding unit, the feeding speed is controlled by controlling system. Machine starts and the belt feeder starts to run, then material will be filled into bag or weighing hopper. When weight value reaches the preset value, the belt feeder will stop running. Operator takes finished bag away or put it on belt conveyor of sewing machine. The single packing is finished.

4. Specification and Model:

Model

Weighing   Range

Filling

    Speed

Accuracy

Power

Referenced

      Weight

Referenced Size (m)

DCS-CWPD

No Weighing   Hopper

10-50kg

2-4 bags/min

±0.2%

1.5kw

650kg

Recommend Mounting Height2.3

DCS-CDPD

Single   Weighing Hopper

10-50kg

3-6 bags/min

±0.2%

2.5kw

750kg

Recommend Mounting Height3.1

DCS-CSPD

Double Weighing Hoppers

10-50kg

6-15bags/min

±0.2%

4kw

1200kg

Recommend Mounting Height3.8
