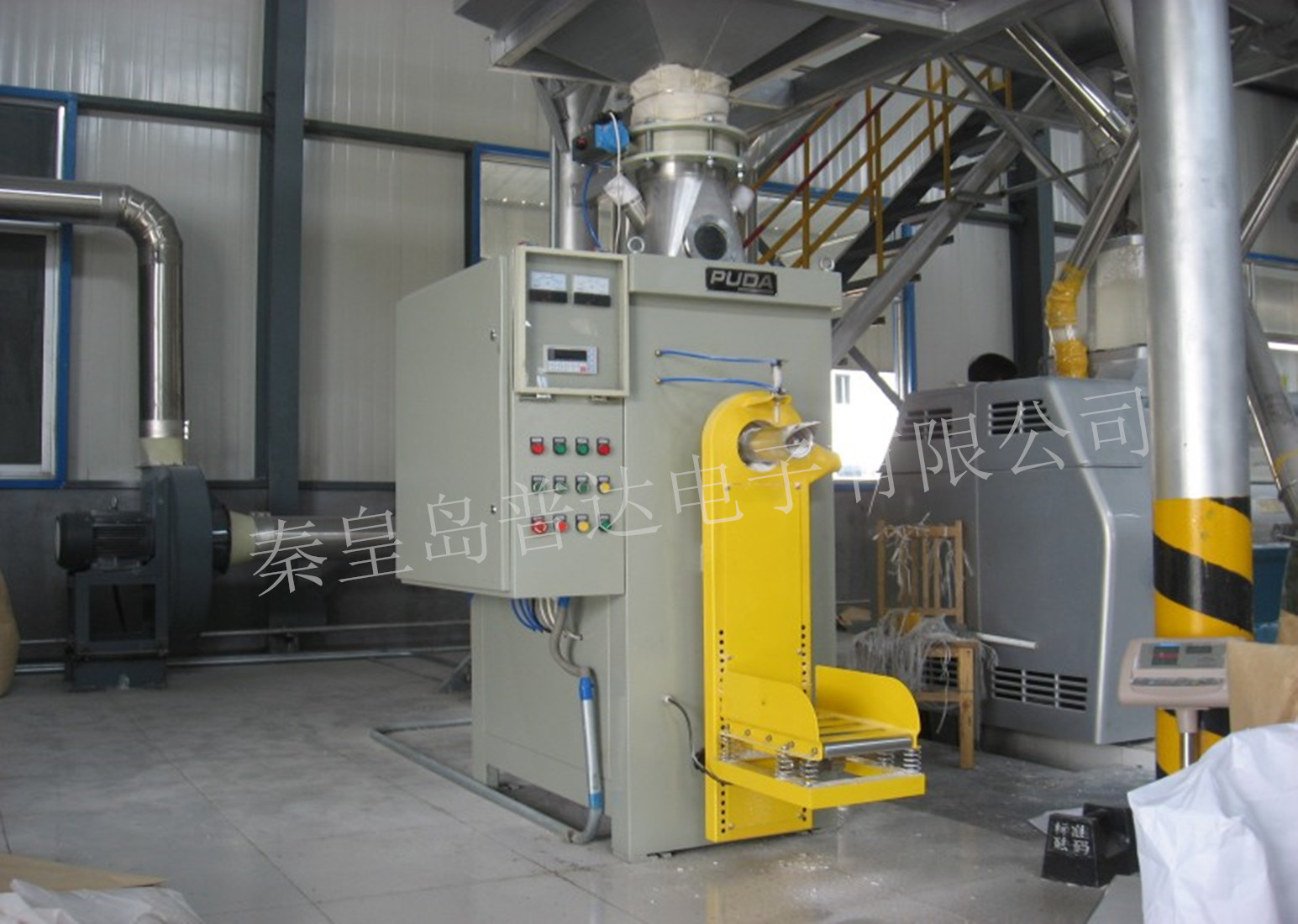

DCS-FW Series: Valve Bag Packing Machine with Screw Feeder

1Product Description:

This series of machines are designed for packing materials in powder or flake into valve bags, the advantages are low dusty and high accuracy. Representative Materials are Flour, Titanium, Alumina, Kaolin, Lime Carbonate, Bentonite, Dry Mortar, and etc.

2Technical Parameters:

l  Weighing Range: 10-50kg

l  Packing Rate: 1-4bags/min (Packing speed depends on the material features and packing bags)

l  Weighing Accuracy: ± 0.1-0.4%

l  Applicable Voltage: AC220V-440V 50/60HZ Three-Phase Four-Wire (Client shall provide local voltage class and frequency)

l  Air Source Requirement: 0.4-0.8MPa Dry Compressed Air, Total Air Consumption 0.2m3/min

l  Applicable Environment: Altitude2000meters, Humidity95% RH Non-congealable Dew, Operating Temperature: 050, Designed Storage Temperature: -2070

     3Working Principle:

Materials are fed into buffer bin from finished product hopper and agitated by homogenized system which can efficiently discharge the air contained in materials out of buffer hopper and prevent material forming bridge to make sure continuously packing process. Materials are filled into packing bag through screw controlled by frequency conversion. When filling weight reaches preset value, packing machine will stop feeding, packing bag will be manually taken off, thus single packing is finished. The weighing instrument of FW type packing machine can choose both gross and net weighing packing.

     4Specification and Model:

Model

Weighing   Range

Packing   Rate

Accuracy

Power

Referenced   Weight

Referenced   Size

L×W×H(m)

Proper Application

DCS-FWJD

Single Screw

10-50kg

1-4 bags/min

±0.1-0.4%

4.5kw

700kg

1.4×1.2×1.8

Free-flowing Powder

DCS-FWJJ

Single Screw with Single Agitator

10-50kg

1-4 bags/min

±0.2-0.4%

5kw

800kg

1.5×1.2×2.0

High Bulk Density Powder

DCS-FWJS

Single Screw with Twin Agitators

10-50kg

1-4 bags/min

±0.2-0.4%

7kw

850kg

1.6×1.4×2.1

Non-free Flowing Powder with High Air Content
