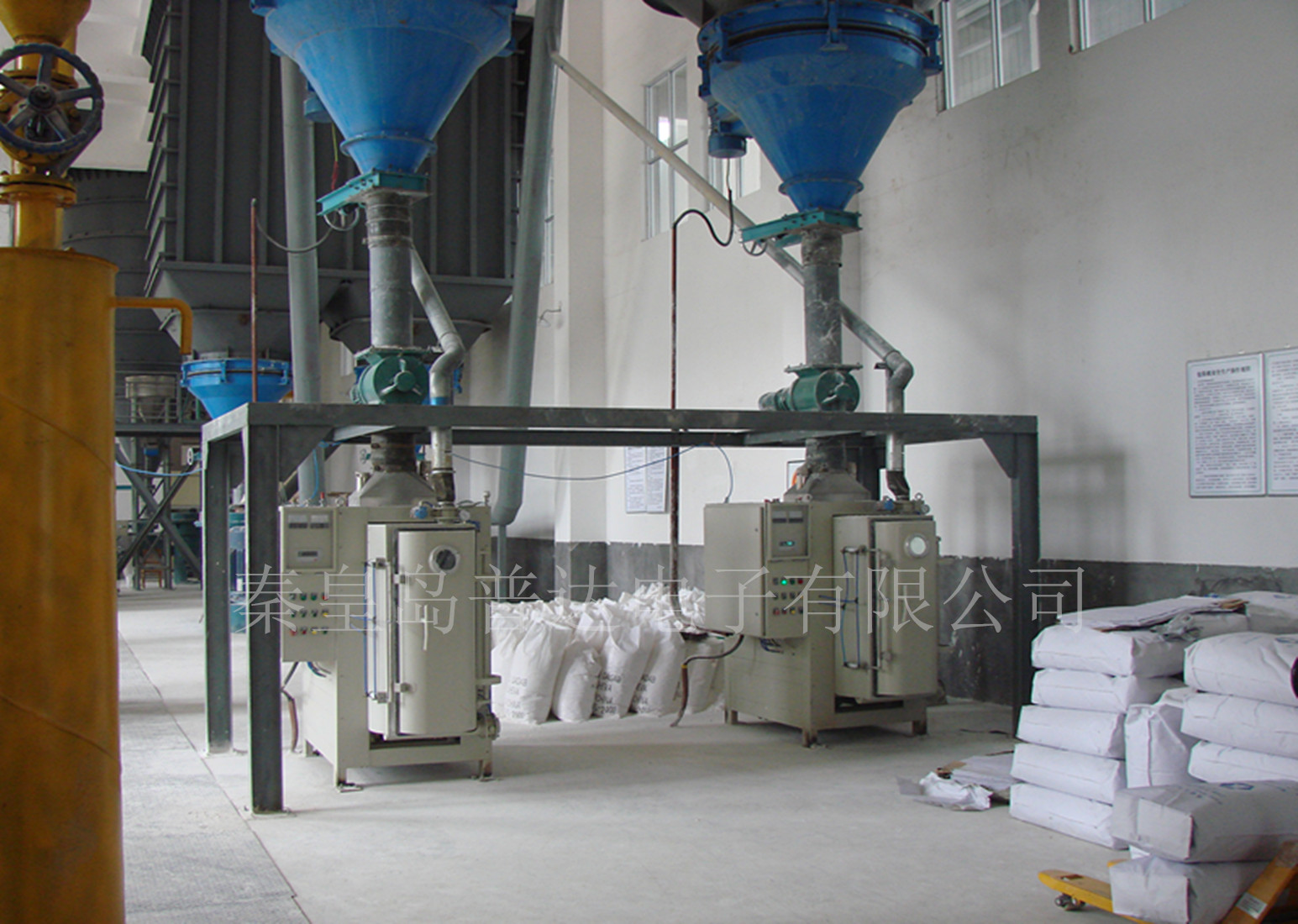

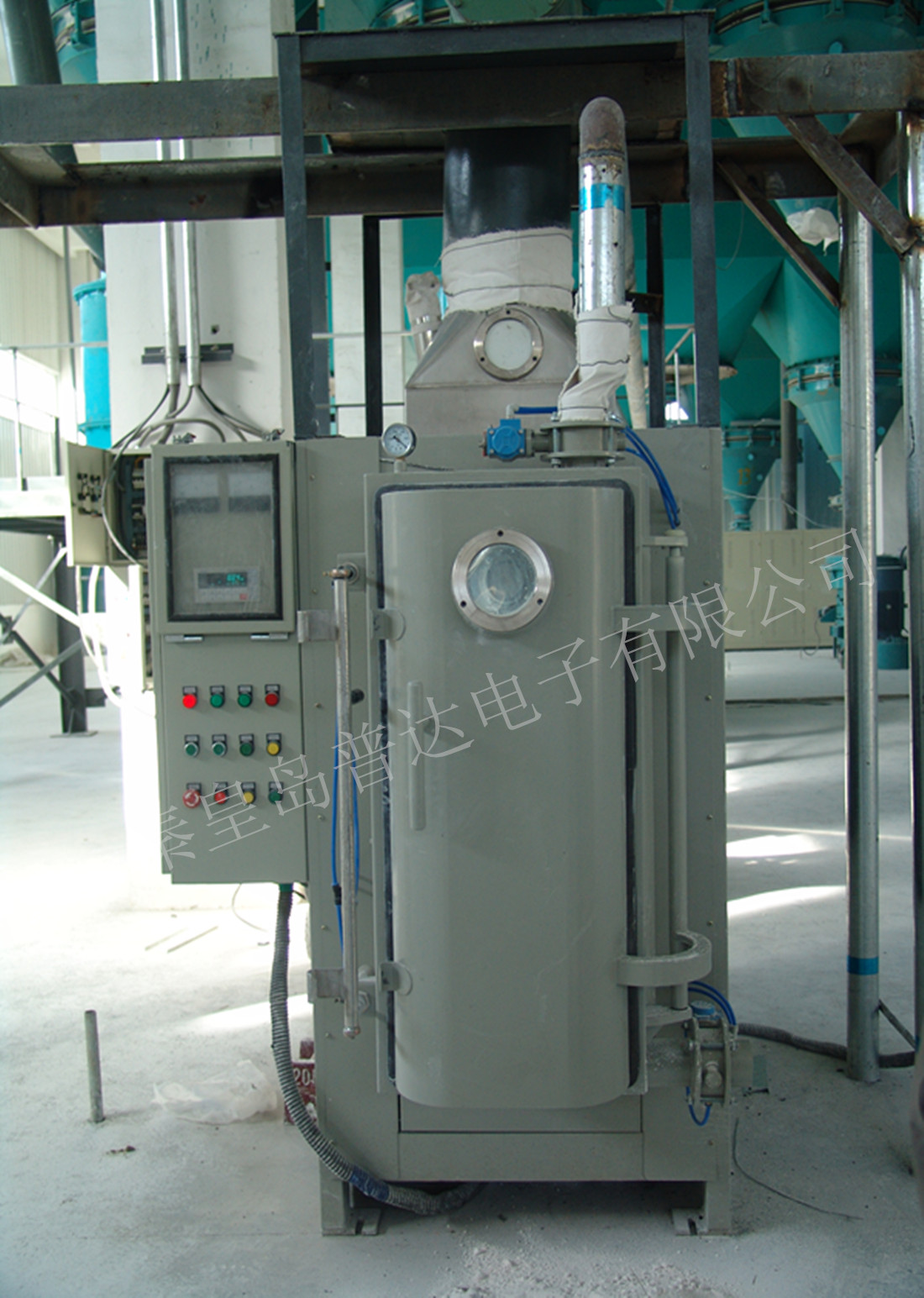

DCS-FZK Series: Vacuum Packer for Valve Bag

1. Product Description:

This series of machines are designed for packing high air content, low bulk density and super fine to nanophase powdery materials into valve bags, the advantage is no dust leaking and protection of the environment. The packaging process can achieve high compression ratio when filling materials, the finished packaging bag has plump shape and smaller size, the packaging effect is particularly outstanding. Representative materials are Silica Powder, Carbon Black, White Carbon Black, Superconducting Carbon Black, Active Carbon in Powder, Stearate, Graphite, and etc.

2. Technical Parameters:

l  Weighing Range: 10-50 kg

l  Packing Rate: 1-4 bags/min (Packing speed depends on the material features and packing bags)

l  Weighing Accuracy: ±0.20.4

l  Applicable Voltage: AC220V-440V 50/60HZ Three-Phase Four-Wire

(Client shall provide local voltage class and frequency)

l  Air Source Requirement: 0.4-0.8MPa Dry Compressed AirTotal Air Consumption: 0.4m3/min

l  Applicable Environment: Altitude≤2000meters, Humidity≤95% RH Non-congealable Dew, Operating Temperature:050, Designed Storage Temperature : -2070

3Working Principle:

DCS-FZK series packing machine adopts negative vacuum inhaling materials. Materials are fed into buffer hopper from finished product hopper and inhaled into packing bag through discharging holes of bag in closed vacuum chamber working on by negative pressure as well as the air in materials are discharged. When filling weight reaches preset value, vacuum fan stops running and vacuum gate opens, packing bag will be manually taken off, thus single packing is finished.

4Specification and Model

Model

Weighing Range

Packing Rate

Accuracy

Power

Referenced Weight

Referenced Size

L×W×H(m)

Proper Application

DCS-FZKC

Vacuum

10-50kg

1-3 bags/min

±0.2-0.4%

4.5kw

800kg

1.7×1.3×1.9

Bulk Density ≤0.3t/m3

DCS-FZKJ

Vacuum and Screw

10-50kg

1-3 bags/min

±0.2-0.4%

6.5kw

900kg

1.7×1.2×2.2

Bulk Density   ≤0.7t/m3

DCS-FZKY

Vacuum and Impeller

10-50kg

2-4 bags/min

±0.2-0.4%

8.5kw

950kg

1.7×1.2×2.3

Bulk Density   ≤0.7t/m3

DCS-FZKQ

Vacuum and Air forced

10-50   kg

2-4 bags/min

±0.2-0.4%

6.0kw

950kg

1.7×1.2×2.2

Powdery Materials with Granule
